Description
The switch on the back of the device allows you to choose one of 3 operating modes:
1) Default: signal transmission over Ethernet cable up to 100 m.
2) VLAN: Electrically isolates the Ethernet ports to reduce interference and prevent the spread of viruses and computer attacks.
3) Extend: Extends the transmission capacity up to 250 meters.
It also provides protection against flash, surges and current fluctuations for all connected devices.
Technical data:

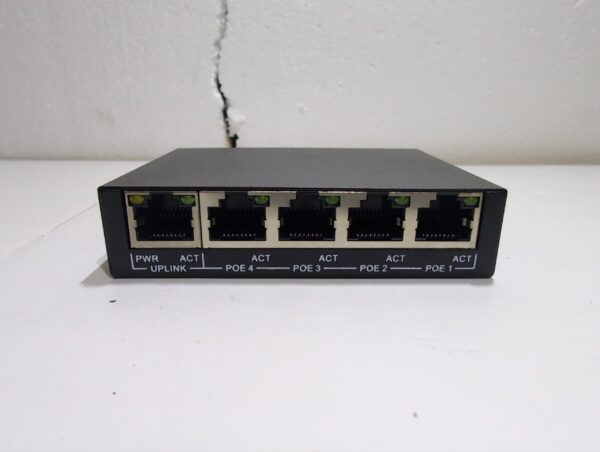

LAN ports quantity: 5x RJ45 (4x PoE + 1x Uplink).
Transfer rate: Fast Ethernet 10/100 Mbps
Bandwidth:1.0Gbps
IEEE standards: 802.3af, 802.3at, 802.3i, 802.3u, 802.3x.
Voltage: up to 48 V with automatic detection of the connected device.
Power: up to 30W on a single PoE port, maximum 60W in total.
Power supply: 220V (included)
Working Temperature: 0-50℃
Operating humidity: 10-90% (without condensation)
Certification: CE, ROHS, FCC.
Dimensions: 9 x 8 x 2 cm.
