Description
DAYUAN – YT1040 Ball Joint Press & U Joint Removal Tool Kit with 4×4 Adapters for Most 2WD and 4WD Cars and Light Trucks, Red
About this item
- 4-IN-1, 4 wheel drive ball joint remover/installer kit.
- Perfect for 4WD ball joint service/repair. 1 “C” frame press 1 “C” frame screw
- Excellent for removal and installation of press-fit parts such as ball joints. Universal joints and truck brake anchor pins.
- It will also remove rusted and corroded parts. High impact blow molded storage case included.
- Set contains C-frame press, 3 receiver tubes sizes: 2-3/4”x3″”, 2-1/4”x 2-1/2” & 1-3/4”x2”, installation and removing adapters.
From the Brand
Instruction
This DAYUAN ball joint bushing press tool kit is made from quality steel with anti-rust finish, heat treated, perfect for removal/installation of press-fit parts, such as ball joints, universal joint, suspension control arm bush and truck brake anchor pins.
It can remove or install ball joints without having to take off the control arms.
Kit comes with a plastic tool case for easy storage.

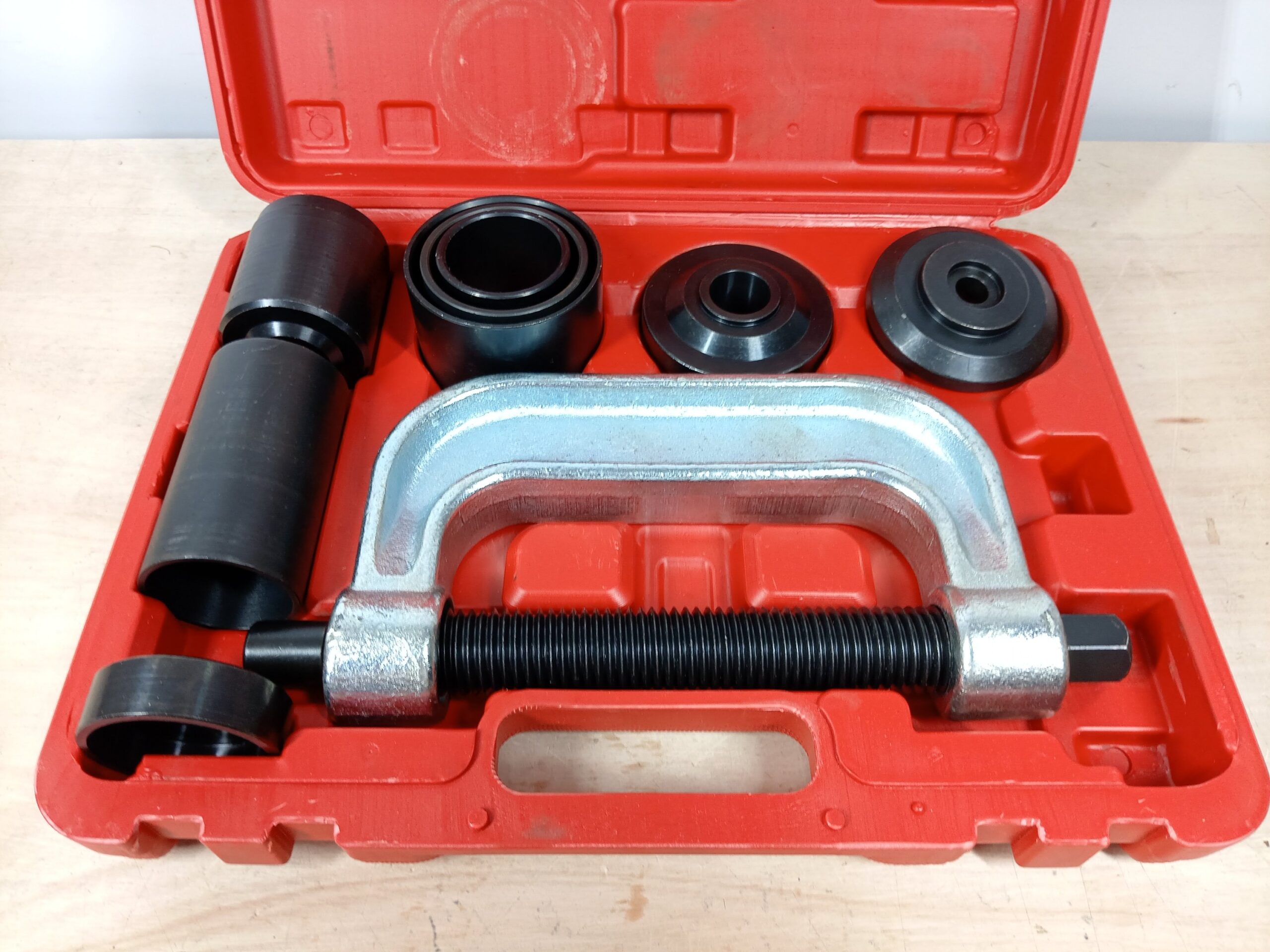

Package Includes
- 1x C-Frame
- 1x Forcing Screw
- 3x Receiving Tubes
- 1x Installation Cup Adapter
- 1x Removal Adapter
- 1x Installation Adapter
- 1x Receiving Cup
- 1x Installation Cup
Part & Dimensions

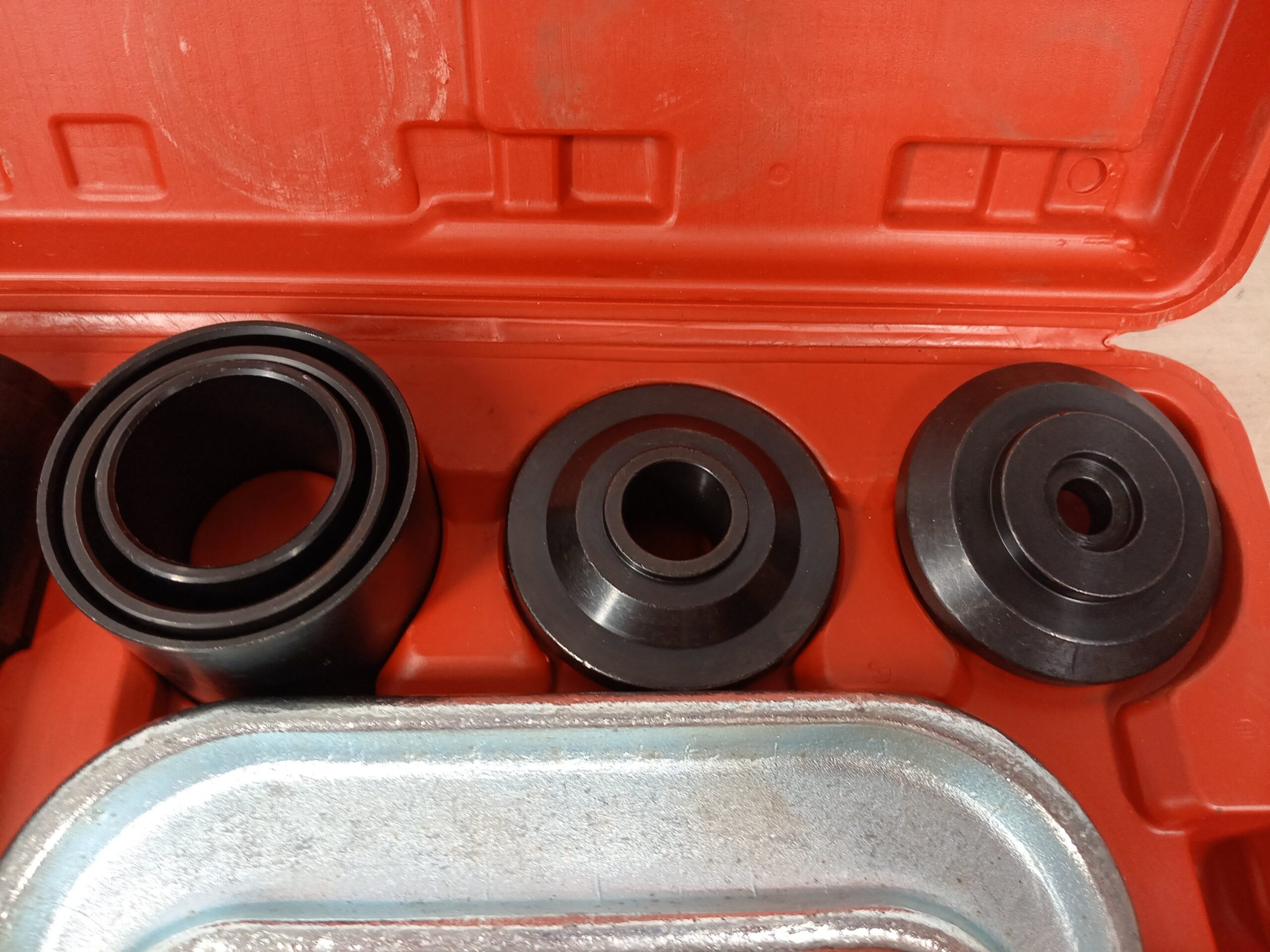

A: Removal Adapter (1.148″ L x 1/2″ I.D. x 3″ O.D.)
B: Forcing Screw
C: Installing Cup (3.676″ L x 1-3/4″ I.D. x 2″ O.D.)
D: Installation Adapter (1.122″ L x 0.941″ I.D. x 3″ O.D.)

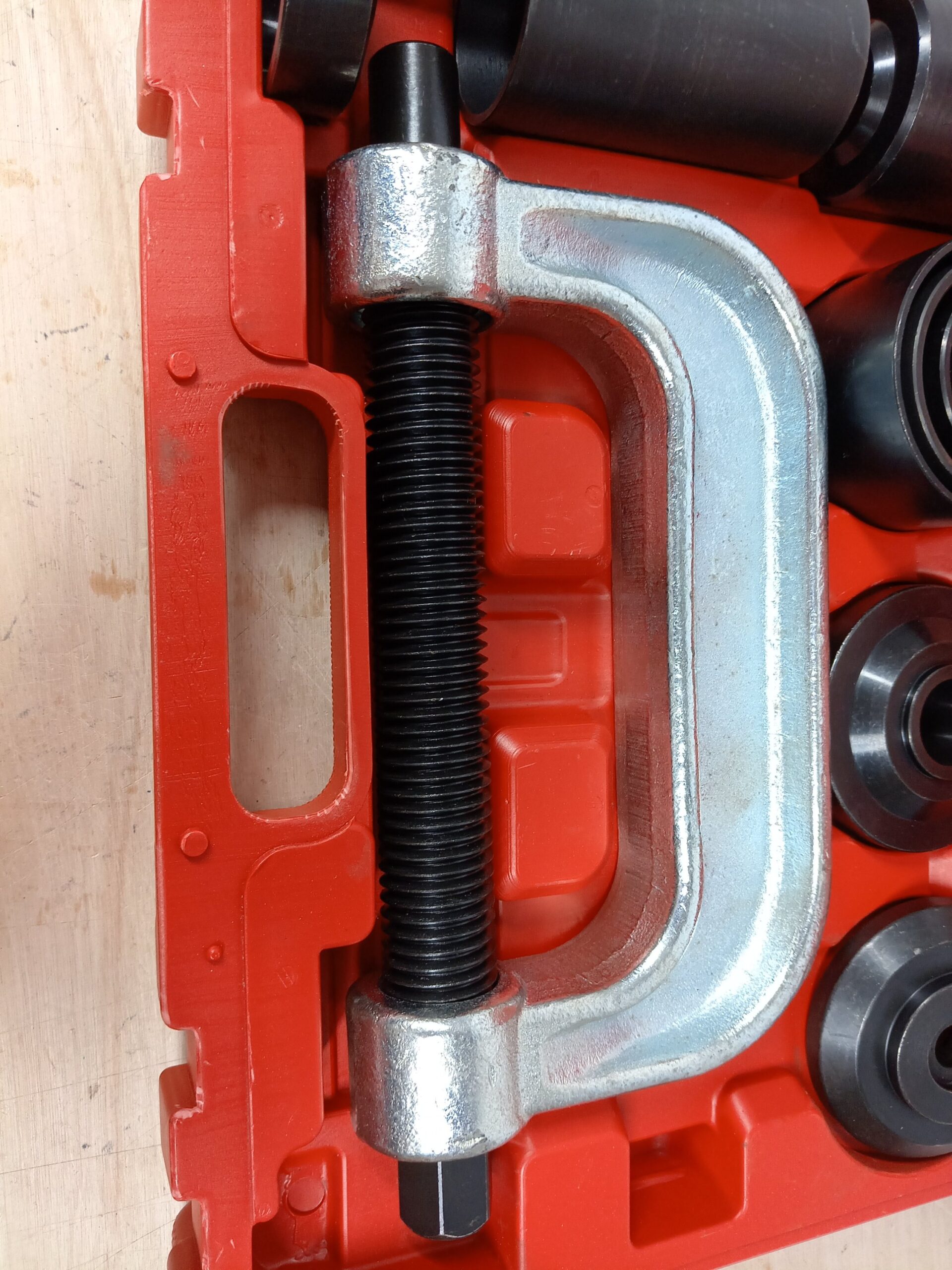

E: Forcing-screw Press (Inner Length: 6.22″/158mm)
F: Receiving Cup (2-1/2″ L x 2″ I.D. x 2-1/4″ O.D.)

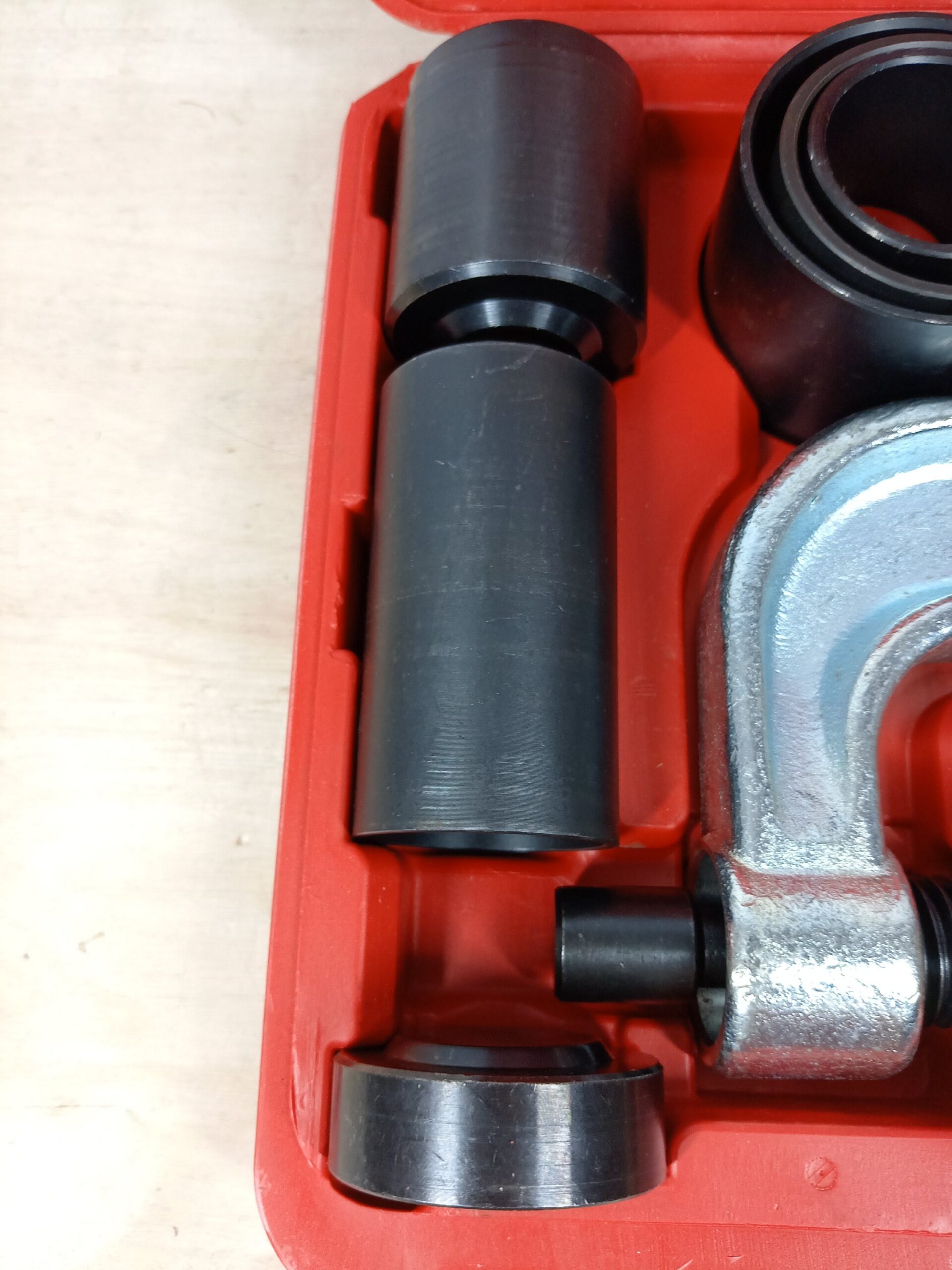

G: Receiving Tube (1-3/4″ L x 1-3/4″ I.D. x 2″ O.D.)
H: Receiving Tube (1-3/4″ L x 2-1/4″ I.D. x 2-1/2″ O.D.)
I: Receiving Tube (2-1/4″ L x 2.723″ I.D. x 3″ O.D.)
J: Install Cup Adapter (0.845″ L x 1.879″ I.D. x 2-1/4″ O.D.)
Quality Set
This DAYUAN tool set is made of ultra carbon steel, these components will stand up to heavy use and accidental drops. It’s even for professional mechanics.
Wide Variety
This tool set fit most American domestic and imported 2-wheel drive (2WD) and 4-wheel drive (4WD) cars and light pickup trucks that have press-fit type ball joints
Easy Storage
Comes in a blow molded case for safe & easy transport and storage.
