Description
- Shower valve supplies water to 1 outlet
- Single sequential control for both temperature & flow
- Adjustable inlet centres mean you can use existing pipework with centres between 110mm and 155mm
- High performance even at 0.5 bar inlet pressure
- Automatic thermostatic shut-off in the event of hot or cold water failure
- Check valves and serviceable filters as standard

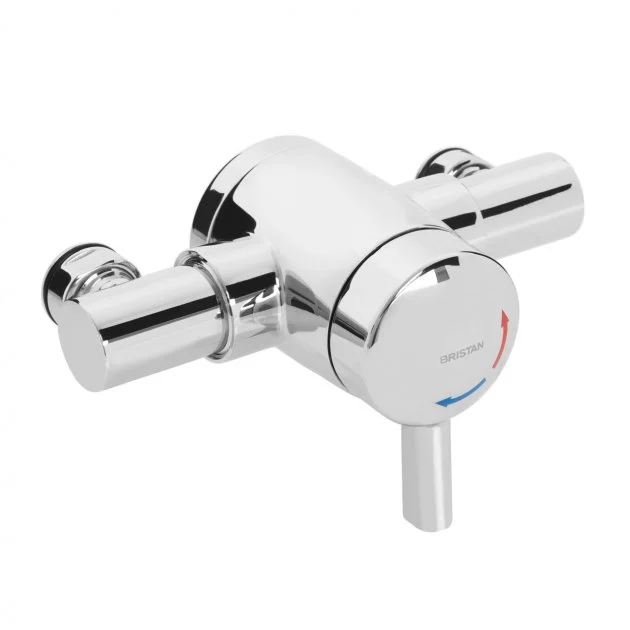

- OPAC Thermostatic TMV3 Mini Valve with Adjustable Elbows and Chrome Lever
- Approved and tested under WRAS
| Shower Type | Thermostatic |
|---|---|
| Shower Valve Controls | 1 |
| Shower Valve Position | Exposed |
| Shower Valve Outlet | 1 |
| Valve Shape | Round |
| Handle Type | Lever |
| Minimum Pressure | 0.1 Bar |
| Maximum Pressure | 5.0 Bar |
| Shower Valve Depth | 97mm |
| Inlet Connection Size | 15mm |
| Outlet Connection Size | 1/2 BSP |
| Connection Centres | 110-155mm |
| System Suitability | All Plumbing System |
| WRAS Approval Number | 1905901 |
| TMV2 Approval Number | NSF2126/0619 |
| Material | Brass |
| Colour | Chrome |
| Brand | Bristan |
| Collection | OPAC |
| Style | Modern |
| Market | Domestic |
| EAN Barcode | 5014868021034 |
| Manufacturer Part Number(s) | MINI2 TS1203 EL C |
| Flow Rate @ 0.5 Bar | 5.7 l/mm |
| Flow Rate @ 1.0 Bar | 7.8 l/mm |
| Flow Rate @ 2.0 Bar | 8.8 l/mm |
| Flow Rate @ 3.0 Bar | 9.1 l/mm |
| Flow Rate @ 5.0 Bar | 9.3 l/mm |
