Description

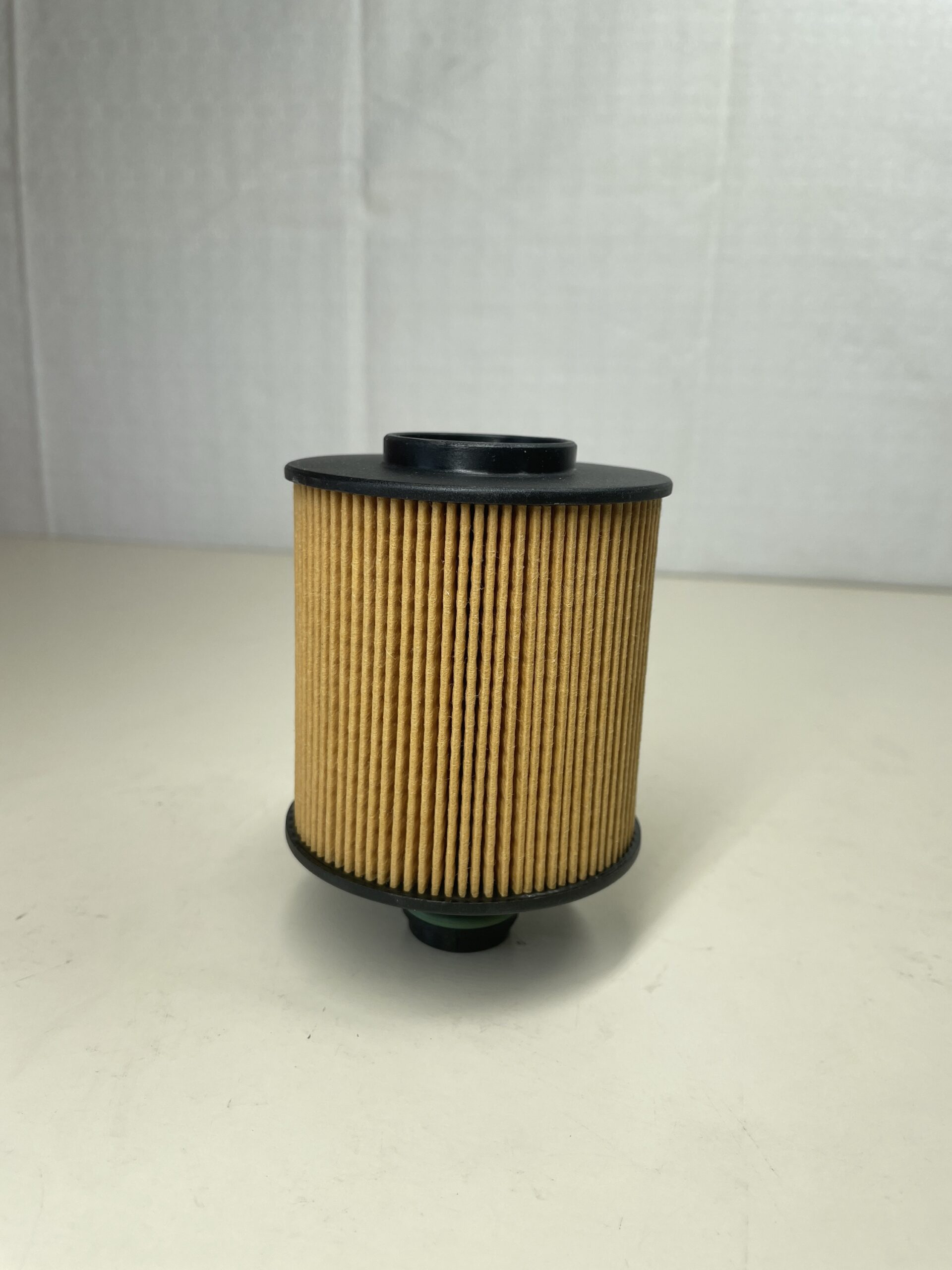

Blue Print ADF122301 Fuel Filter, pack of one
About this item
- Original Blue Print spare part – Right First Time
- Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed!
- Height: 76 mm; Inner Diameter: 15 mm; Outer Diameter: 90 mm; Sealing Ring Diameter: 91 mm; Weight: 0,12 kg; Filter Type: filter insert
- OE numbers (for comparison purposes only): Citroën 1906.C0; FIAT 9467621680; Ford PKW 1 318 563; Lancia 9467621680; Peugeot 1906.C0; Volvo PKW 8653668; OEM numbers (for comparison purposes only): Nipparts N1332106, Bosch 1 457 431 723, Japanparts FC-ECO027
- among others suitable for: Ford: C-MAX 03, C-MAX 07, Focus 04, Focus 06, Focus 08, Galaxy 06, Galaxy 15, Kuga 08, Kuga 08 4×4; Citroën: C4 I, C4 I Grand Picasso, C4 I Picasso, C5 II, C5 III, C8; Peugeot: 0508, 307 I, 308, 308 I, 407, 807, Expert II; Volvo: C 30, C 70 II, S 40 II, V 50; FIAT: Scudo II, Ulysse II; Lancia: Phedra
From the manufacturer
Impurities in the fuel
Unfortunately, contaminants – which enter the system during refueling and corrosion in metal fuel tanks – are commonplace and a danger to any modern fuel system. Even the smallest particles can damage the nozzle spigots and cause a change in the spray pattern. This in turn has a detrimental effect on combustion efficiency, fuel consumption, stability of idle and emissions.
Flawless Flow: 5 US
Sufficient flow: 1
Insufficient flow: 2,3,4,6
Contamination by water and water separation
Abrasive dirt particles must be filtered out from both petrol and diesel fuel. However, there is additional filtration requirement for diesel.
Water molecules are a problem in diesel fuel systems. Condensate forms in the tank and the fuel may contain water molecules in suspended or emulsified form. Without good filtration, this water can cause components in the pump and injectors in the fuel system to rust.
Blue Print diesel fuel filters use a water resistant coalescence material that allows the fuel to pass but retains water. The separated water collects in droplet form at the bottom of the filter container. There it can be drained as part of routine maintenance.
Picture: 1. Reed switch / 2. Float with magnetic insert. Water drain plug
